Horizontal 5‑Axis

Accuracy and automation mean higher productivity at the lowest cost per part.

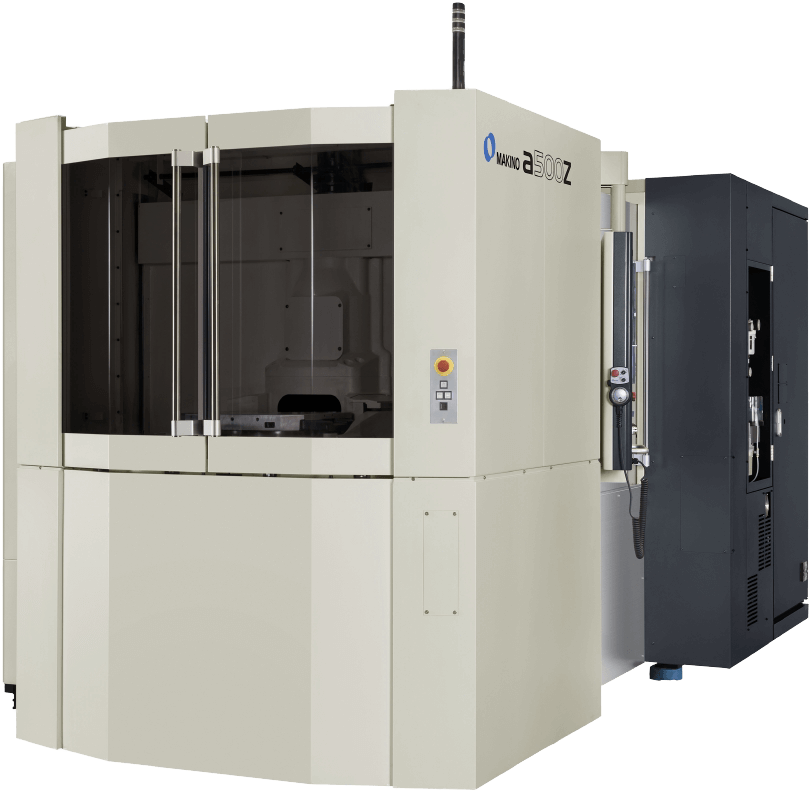

a500z sil

The Ultimate Level of Productivity, Accuracy, and Automation

Makino 5-axis horizontal machining centers provide unprecedented levels of productivity and accuracy in the most complex, full 5-axis machining applications.

Regardless of the material or process at hand, Makino’s custom technologies provide world-class efficiency in contoured parts. The ultra-high-accuracy rotary axes and superior motion-control systems eliminate compound errors and maximize accuracy while improving speed and productivity reducing part cycle times.

All Makino 5-axis HMCs are configurable for automated manufacturing. When our 5-axis horizontal machining centers are integrated into an automated system, manufacturers can expect spindle utilization rates of up to 95%, and fully unattended operation over nights and weekends. By maximizing utilization, Makino 5-axis HMCs achieve the highest levels of productivity at the lowest achievable cost per part.

In Europe, Makino 5-axis horizontal machining centers are supporting manufacturers by giving them a globally competitive edge by making the parts that matter in the most demanding applications.

Purpose Built Machines: Choose Your Series

The Makino MAG-Series of 5-axis horizontal machining centers are the ideal choice for machining medium to large aluminum airframe components. Unparalleled metal-removal rates and superior chip management systems have raised the bar for productivity and efficiency.

The Makino T-Series with TI ADVANTIGE™ titanium machining technologies provide four times the productivity and up to nine times the tool life over traditional titanium milling.

All Makino a1-Series HMCs can be configured for full 5-axis horizontal machining applications, making them ideal systems for efficient machining in aerospace and medical manufacturing.
learn more
Purpose Built Machines: Choose Your Series

X:

1,280 mm

Y:

1,200 mm

Z:

1,120 - 1,325 mm

Rapid Traverse:

60,000 mm/min

Spindle Taper:

7/24 taper #50

Pallet:

500 mm

19.7"

X:

730 mm

28.7"

Y:

750 mm

29.5"

Z:

500 mm - 700 mm

19.7" - 27.6"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

Ø 630 mm x 500 mm High

Ø 24.9” x 19.7” High

Spindle Taper:

HSK-A63 / BT40

Pallet:

BBT50 Tool holder

BBT50 Tool holder

X:

580 mm

22.8"

Y:

640 mm

25.2"

Z:

500 mm

19.7"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Pallet:

400 mm

15.75"

X:

730 mm

28.7"

Y:

730 mm

28.7"

Z:

680 mm

26.8"

Rapid Traverse:

48,000 mm/min (X&Y), 43,000 mm/min (Z)

1,890 ipm (X&Y), 1,693 ipm (Z)

Maximum Workpiece:

700 mm ø x 400 mm (with limitations)

27.6" ø x 15.75" (with limitations)

MAG-Series

Pallet:

800 x 1000 mm

31.5" x 39.4"

X:

1,520 mm

59.8"

Y:

1,100 mm

43.3"

Z:

1,350 mm

53.1"

Rapid Traverse:

50,000 mm/min

1,968 ipm

Maximum Workpiece:

ø1,500 x 1,500 mm

ø59" x 59"

Pallet:

3,000 x 1,500 mm

118.1" x 59.1"

X:

3,000 mm

118.1"

Y:

1,500 mm

59"

Z:

1,000 mm

29.5"

Rapid Traverse:

X: 62,700 mm/min Y&Z 58,000 mm/min

X: 2,468 ipm Y&Z 2,283 ipm

Maximum Workpiece:

3,000 x 1,500 x 750 mm

118.1" x 59" x 29.5"

Pallet:

3,000 x 1,500 mm

118.1" x 59.1"

X:

3,000 mm

118.1"

Y:

1,800 mm

70.9"

Z:

1,000 mm

39.4"

Rapid Traverse:

25,400 mm/min

1,000 ipm

Maximum Workpiece:

3,000 x 1,800 x 500 mm

118.1" x 70.9" x 19.7"

Pallet:

3,500 x 1,500 mm

137" x 78.7"

X:

4,000 mm

157.5"

Y:

1,500 mm

59.1"

Z:

1,000 mm

39.4"

Rapid Traverse:

X: 62,700 mm/min Y&Z 58,000 mm/min

X: 2,468 ipm Y&Z 2,283 ipm

Maximum Workpiece:

4,000 x 1,500 x 750 mm

157.4" x 59" x 29.5"

Pallet:

3,500 x 1,500 mm

137.8" x 59.1"

X:

4,000 mm

157.5"

Y:

1,800 mm

70.9"

Z:

1,000 mm

39.4"

Rapid Traverse:

25,400 mm/min

1,000 ipm

Maximum Workpiece:

4,000 x 1,800 x 500 mm

157.5" x 70.9" x 19.7"

N-Series

Pallet:

200 mm ø

7.87" ø

X:

300 mm

11.8"

Y:

300 mm

11.8"

Z:

230 mm

9.1"

Rapid Traverse:

42,000 mm/min (X&Y), 56,000 mm/min (Z)

1,653 ipm (X&Y), 2,205 ipm (Z)

Maximum Workpiece:

300 mm ø x 270 mm (with limitations)

11.8" ø x 10.6" (with limitations)

T-Series

Pallet:

1,000 mm

39.37"

X:

1,500 mm

59.1"

Y:

1,300 mm

51.2"

Z:

2,000 mm

78.7"

Rapid Traverse:

25,000 mm/min

984.3 in/min

Maximum Workpiece:

ø1,500 mm x 1,500 mm

ø59" x 59"

Pallet:

1,000 mm x 1,250 mm

39.4" x 49.2"

X:

2,000 mm

78.7"

Y:

2,000 mm

78.7"

Z:

1,800 mm

70.8"

Rapid Traverse:

20,000 mm/min

787 ipm

Maximum Workpiece:

ø1,900 x 2,000 mm

ø74.8" x 78.7"

Pallet:

4,000 x 1,500 mm

157.5" x 59.1"

X:

4,200 mm

165.3"

Y:

2,000 mm

78.7"

Z:

1000 mm

39.4"

Rapid Traverse:

16,000 mm/min

630 ipm

Maximum Workpiece:

4,000 x 1,500 x 700 mm

157.4 x 59.0 x 27.4"
